EC
The EC coupling is a torsionally flexible elastomer coupling in a double flange design and is particularly suitable for demanding applications in heavy machinery construction. Since the claw ring and flange are designed as two separate components, the coupling or elastomer element can be mounted and dismantled radially without having to move the drive or driven machine.
- Torsionally flexible
- Vibration damping
- Replacement of the elastic ring without moving the coupled machines
- Fail-safe
- Electrically insulating
- Low maintenance
- Tkn 560 Nm to 35.000 Nm
- Nmax up to 8.000 1/min
- -30°C to 90°C
- Hubs finish bored with keyway acc. to DIN 6885
- Hubs pilot bored
- Coupling dynamically balanced in accordance with ISO 21940 Grade: G 2.5; G 6.3
- Hubs in special lengths
- Hubs made of special material
- Test certificate DIN EN 10204-3.1

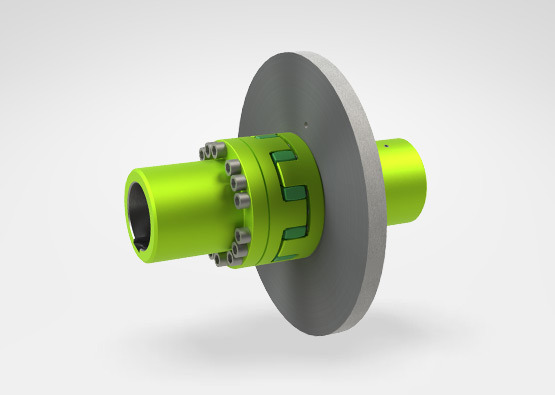

- Available with and without brake disc
