EB

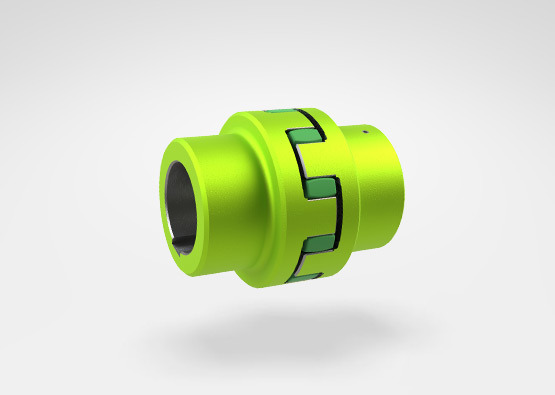

The torsionally flexible coupling transmits torque in a form-fitting manner and reliably compensates for axial, radial and angular misalignments. The elastomer works predominantly under compressive stress, which enables high load capacity, low noise and a long service life. Through elastic deformation, vibrations and torque peaks are effectively dampened, which protects the entire drive system and improves torsional vibration behavior. The compact design allows for easy plug-in installation in both horizontal and vertical positions and is suitable for a wide range of industrial applications. High nominal torques, a wide temperature range and use in demanding environments are possible, making the coupling a robust and fail-safe solution.
- Torsionally flexible
- Vibration damping
- Fail-safe
- Electrically insulating
- Low maintenance
- Tkn 560 Nm to 35.000 Nm
- Nmax up to 8.000 1/min
- -30°C to 90°C
- Hubs finish bored with keyway acc. to DIN 6885
- Hubs pilot bored
- Coupling dynamically balanced in accordance with ISO 21940 Grade: G 2.5; G 6.3
- Hubs in special lengths
- Hubs made of special material
- Test certificate DIN EN 10204-3.1
- Also available with brake disk
