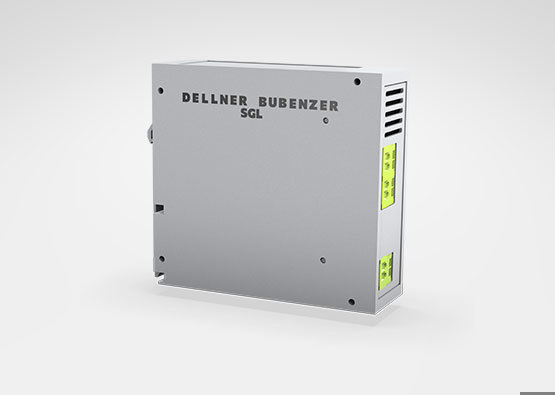

Switching Rectifier SGL
Din rail mounted unit switches from bridge rectification to half-wave rectification
- EMC compatibility
- Top-hat rail mounted
- Combinable with Brake Control Unit BCU2001
- Integrated protective element
- Integrated spark quench element
- Prepared for switching AC and DC circuits simultaneously
- Switches from bridge rectification to half-wave rectification
- Four time settings 0,5 s, 1 s, 1,5 s, 2 s adjustable
- Applying brakes at elevated temperatures
- Accelerated brake release (Overexcitation with AC power supply voltage = 2 x DC coil voltage)
- Accelerated brake effect (Standard excitation with AC power supply voltage = DC coil voltage)
